TDA7285

Features: ` WIDE OPERATING SUPPLY VOLTAGE (1.8V to 6V)` HIGH OUTPUT POWER (30mW/32/3V)` LOW DISTORTION DC VOLUME CONTROL` NO BOUCHEROT CELL` LOW QUIESCENT CURRENT (15mA)` NO INPUT CAPACITORS FOR PREAMPLIFIERS` LOW MOTOR REFERENCE VOLTAGE(200mV)PinoutSpecifications Symbol Parameter Value ...

product image

TDA7285 Picture
See larger image
SeekIC No. : 004516569 Detail

TDA7285: Features: ` WIDE OPERATING SUPPLY VOLTAGE (1.8V to 6V)` HIGH OUTPUT POWER (30mW/32/3V)` LOW DISTORTION DC VOLUME CONTROL` NO BOUCHEROT CELL` LOW QUIESCENT CURRENT (15mA)` NO INPUT CAPACITORS FOR PRE...

TDA7285 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA7285
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` WIDE OPERATING SUPPLY VOLTAGE (1.8V to 6V)
` HIGH OUTPUT POWER (30mW/32/3V)
` LOW DISTORTION DC VOLUME CONTROL
` NO BOUCHEROT CELL
` LOW QUIESCENT CURRENT (15mA)
` NO INPUT CAPACITORS FOR PREAMPLIFIERS
` LOW MOTOR REFERENCE VOLTAGE(200mV)




Pinout

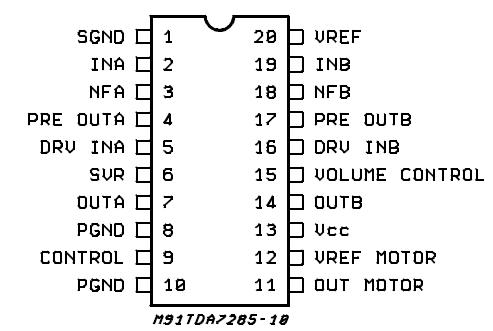

Connection Diagram




Specifications

Symbol Parameter
Value
Unit
Vs Supply Voltage
8
V
IOmax Maximum Output Current
70
mA
Im max Maximum Motor Current
700
mA
Ptot Total Power Dissipation Tamb = 90°C
0.9
W
Top Operating Temperature
-20 to +70
Tstg, Tj Storage and Junction Temperature
-40 to 150





Description

The TDA7285 is a monolithic integrated circuit designed for the portable players market and assembledin a plastic DIP20 and SO20. The internal functions are: preamplifier, DC volume control,headphone driver and motor speed controlle.
