TDA7278

Audio DSPs CD Actuator Driver

product image

TDA7278 Picture
See larger image
SeekIC No. : 00312066 Detail

TDA7278: Audio DSPs CD Actuator Driver

TDA7278 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA7278
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Mounting Style : SMD/SMT Package / Case : PQFP-44
Packaging : Tray

Description

Operating Supply Voltage :
Supply Current :
Operating Temperature Range :
Mounting Style : SMD/SMT
Packaging : Tray
Package / Case : PQFP-44


Features:

*WIDE OPERATIVE SUPPLY RANGE (1.6 to 5V) LOW VOLTAGE OPERATION CAPABILITY
*4 LOAD DRIVING VOLTAGES PWM REGULATED(STEPDOWNFROM BATTERY)
*LOW ON RESISTANCE H BRIDGES
(2 x1.6? MAX +2 x2.5? MAX)FOR:
FOCUSANDTRACKING ACTUATORS
SLEDGEAND SPINDLE MOTORS
*SYNCHRONIZABLE SAWTOOTHOSCILLATOR
*CONFIGURABLE DC/DC CONVERTER FOR
ADJUSTABLE MAIN POWER SUPPLY, WITH
LOW ON RESISTANCE(0.4  MAX)SWITCH
*GENERAL ENABLE INPUT
*ADJUSTABLE WATCH DOG AND DELAYED
POWER ON RESET FUNCTIONS

*ADJUSTABLE COMPARATORS FOR BAT-
TERY LOW AND BATTERY EMPTY DETECTION




Pinout

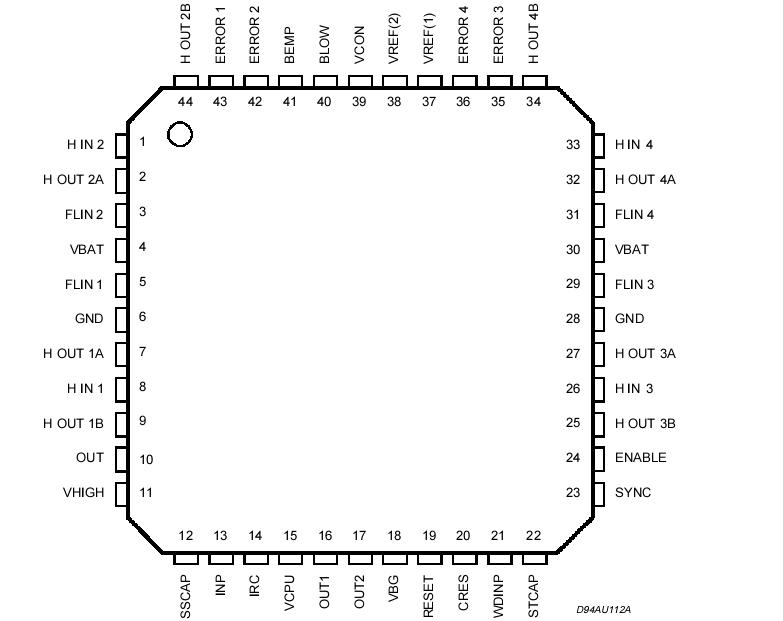

Connection Diagram


Specifications

Pin Name Min Max Unit
HIN 1, HIN 2, HIN 3, HIN 4 -0.4 8 V
HOUT 1A, HOUT 2A, HOUT 3A, HOUT 4A,HOUT 1B, HOUT 2B,HOUT3B,HOUT 4B -0.4 8 V
FLIN 1, FLIN 2,FLIN3, FLIN 4 -0.4 10 V
ERROR 1, ERROR 2, ERROR 3, ERROR 4, -0.4 7 V
VBAT -0.4 8 V
VREF1,VREF 2 -0.4 7 V
BLOW, BEMP, VCON -0.4 7 V
OUT, VHIGH -0.4 16 V
OUT 2 -0.4 8 V
OUT 1 -0.4 16 V
SSCAP, IRC, INP -0.4 7 V
VCPU -0.4 7 V
VBG, RESET, CRES,WDINP, STCAP, SYNC -0.4 7 V
EN -0.4 8 V
