Product Details

Description



Features:

.EXCELLENT VERSATILITY IN USE
.HIGH OUTPUT CURRENT(upto 1.5A)
.LOW QUIESCENT CURRENT
.LOW REFERENCE VOL TAGE(1.32V)
.EXCELLENT PARAMETERS STABILITYVER-
SUS AMBIENT TEMPERATURE
.START/STOP FUNCTION(TTL levels)
.DUMP PROTECTION

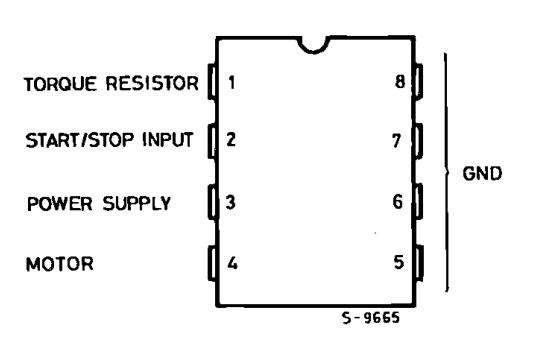

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VS
Supply Voltage
19
V
VS
Peak Supply Voltage (for 50ms)
45
V
IM
Maximum Output Current
1.5
A
Top
Operating Temperature Range
30 to +85
Ptot
Power Dissipation at Tamb =70
1
W

at Tpins=70

4
W



Description

The TDA7275A is a linear integrated circuit in minidip plastic package.It is intended for use as speed  regulator for DC motors of record players , tape and  cassette recorders.

The dump protection make it particularly suitable for  car radio applications.
