Features:

*TACHIMETRIC SPEED REGULATION WITH
NO NEED FOR AN EXTERNAL SPEED PICK-UP
*V/I SUPPLEMENTA RYPREREGULATION
*DIGITAL CONTROL OF DIRECTION AND
MOTOR STOP
*SEPARATE SPEED ADJUSTMENT
*5.5V TO 18V OPERATING SUPPLY VOLTAGE
*1A PEAK OUTPUT CURRENT
*OUTPUT CLAMP DIODES INCL UDED
*SHORT CIRCUIT CURRENT PROTECTION
*THERMAL SHUT DOWN WITH HYSTERESIS
*DUMP PROTECTION (40V)
*ESD PROTECTION

Pinout

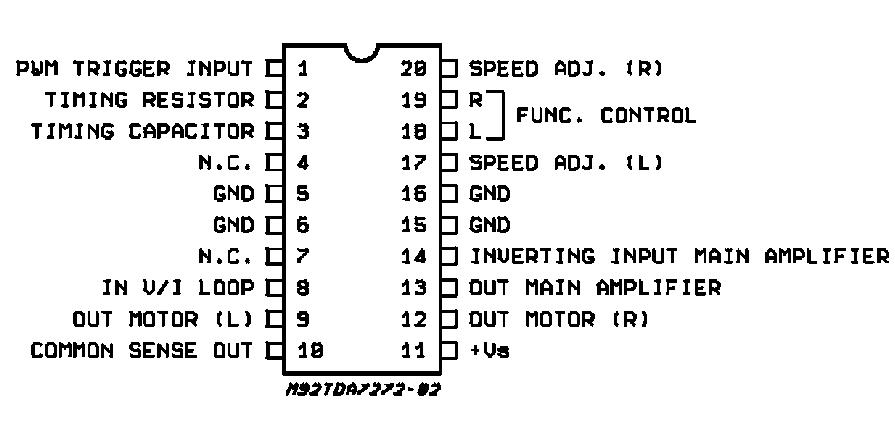

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
VS	DC Supply Voltage	24	V
VS	Dump Voltage (300ms)	40	V
IO	Output Current	Internally limited
Ptot	PowerDissipation at Tpins =90°C	4.3	W
Ptot	at Tamb=70°C	1	W
Top	Operating Temperature Range	-40 to 85	°C
Tstg	Storage Temperature	-40 to150	°C

Description

TDA7272A are high performance motor speed controller for small power DC motors as used in cassetteplayers.

Using the motor as a digital tachogenerator itself the performance of true tacho controlled systems
is reached.
A dual loop controlcircuit of the TDA7272A provideslong term stability and fast settling behaviour.
