TDA7269SA

Features: WIDE SUPPLY VOLTAGE RANGE UP TO +20V SPLIT SUPPLY 10+10W @THD = 10%, RL= 8Ω, VS = ±14V NO POP AT TURN-ON/OFF MUTE (POP FREE) STAND-BY FEATURE (LOW Iq) SHORT CIRCUIT PROTECTION TO GND THERMAL OVERLOAD PROTECTION CLIPWATT 11 PACKAGEPinoutSpecifications Symbol Parameter Valu...

product image

TDA7269SA Picture
See larger image
SeekIC No. : 004516563 Detail

TDA7269SA: Features: WIDE SUPPLY VOLTAGE RANGE UP TO +20V SPLIT SUPPLY 10+10W @THD = 10%, RL= 8Ω, VS = ±14V NO POP AT TURN-ON/OFF MUTE (POP FREE) STAND-BY FEATURE (LOW Iq) SHORT CIRCUIT PROTECTION TO G...

TDA7269SA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA7269SA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

WIDE SUPPLY VOLTAGE RANGE UP TO
   +20V
SPLIT SUPPLY
10+10W @THD = 10%, RL= 8Ω, VS = ±14V
NO POP AT TURN-ON/OFF
MUTE (POP FREE)
STAND-BY FEATURE (LOW Iq)
SHORT CIRCUIT PROTECTION TO GND
THERMAL OVERLOAD PROTECTION
CLIPWATT 11 PACKAGE


Pinout

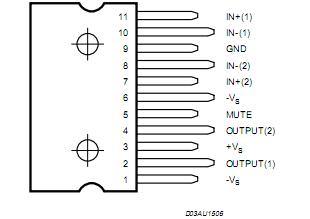

Connection Diagram


Specifications

Symbol Parameter Value Unit
VS DC Supply Voltage ±22 V
IO Output Power Current (internally limited) 3 A
Ptot Total Power Dissipation (Tamb = 70°C) 20 W
Tamb Ambient Operating Temperature (1) 0 to 70 °C
Tstg, Tj Storage and Junction Temperature -40 to +150



Description

*The TDA7269SA is class AB power amplifier assembled in the @ Clipwatt 11 package, specially designed for high quality sound application as Hi-Fi music centers and stereo TV sets.
    The TDA7269SA is pin to pin compatible with
    TDA7269, TDA7269A, TDA7269ASA, TDA7265,
    TDA7499, TDA7499SA.
