Product Details

Description

Features:

` WIDE SUPPLY VOLTAGE RANGE UP TO +20V
` SPLIT SUPPLY
` HHIGH OUTPUT POWER 14+14W @THD = 10%, R_L= 8, V_S= ±16V
` NO POP AT TURN-ON/OFF
` MUTE (POP FREE)
` STAND-BY FEATURE (LOW I_q)
` SHORT CIRCUIT PROTECTION TO GND
` THERMAL OVERLOAD PROTECTION
` CLIPWATT 11 PACKAGE

Pinout

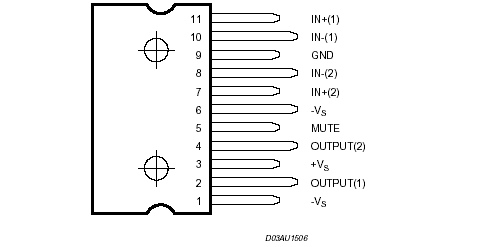

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_S	Supply Voltage	±22	V
I_O	Output Peak Current (internally limited)	3	A
P_tot	Total Power Dissipation (Tcase = 70)	20	W
T_amb	Ambient Operating Temperature (1)	0 to 70
T_stg,T_j	Storage and Junction Temperature	-40 to 150

Description

The TDA7269ASA is class AB Dual Audio Power amplifier assembled in the @ Clipwatt 11 package, specially designed for high quality sound application as Hi-Fi music centers and stereo TV sets.

The TDA7269ASA is pin to pin compatible with TDA7269, TDA7269A, TDA7269SA, TDA7265, TDA7499, TDA7499SA.
