TDA7269A

Common Mode Rejection Ratio (Min) :
Packaging : Tube
THD plus Noise : 0.03 %
Maximum Operating Temperature : + 70 C
Output Type : 2-Channel Stereo
Mounting Style : Through Hole
Product : Class-AB
Package / Case : Multiwatt-11
Available Set Gain : 80 dB
Operating Supply Voltage : 22 V
Output Power : 14 W
Supply Current : 3 A
Maximum Power Dissipation : 40000 mW


Features:

*WIDE SUPPLY VOLTAGE RANGE UP TO
±20V
*SPLIT SUPPLY
*HIGH OUTPUT POWER
14 + 14W @THD =10%, RL =8Ω,VS = +16V
*NO POP AT TURN-ON/OFF
*MUTE (POP FREE)
*STAND-BY FEATURE (LOWIq)
*SHORT CIRCUIT PROTECTION TO GND
*THERMALOVERLOAD PROTECTION

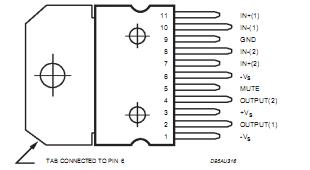

Pinout






Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	22	V
IO	Output Peak Current (repetitive f >20Hz)	3	A
Ptot	Total Power Dissipation (Tcase =70°C)	40	W
Top	Operating Temperature	0 to 70	°C
Tstg,Tj	Storage and Junction Temperature	-40 to 150	°C

Description

*The TDA7269A is class AB dual Audio power amplifier assembled in the Multiwatt package, specially designed for high quality sound application as Hi-Fimusic centers and stereo TV sets.




Parameters:

Technical/Catalog Information	TDA7269A
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	Multiwatt-11 (Vertical, Bent and Staggered Leads)
Type	Class AB
Output Type	2-Channel (Stereo)
Voltage - Supply	±5 V ~ 20 V
Packaging	Tube
Features	Depop, Mute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load	14W x 2 @ 8 Ohm
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA7269A TDA7269A 497 3964 5 ND 49739645ND 497-3964-5
