TDA7269

Common Mode Rejection Ratio (Min) :
Operating Supply Voltage :
Supply Current :
Packaging : Tube
THD plus Noise : 0.03 %
Maximum Operating Temperature : + 70 C
Output Type : 2-Channel Stereo
Output Power : 10 W
Mounting Style : Through Hole
Product : Class-AB
Package / Case : Multiwatt-11
Available Set Gain : 80 dB
Maximum Power Dissipation : 40000 mW


Features:

*WIDE SUPPLY VOLTAGE RANGE UP TO
  ±20V
*SPLIT SUPPLY
*HIGH OUTPUT POWER
 10 + 10W @THD =10%, RL =8Ω,VS = +14V
*NO POP AT TURN-ON/OFF
*MUTE (POP FREE)
*STAND-BY FEATURE (LOWIq)
*THERMALOVERLOAD PROTECTION
*SHORT CIRCUIT PROTECTION TO GND

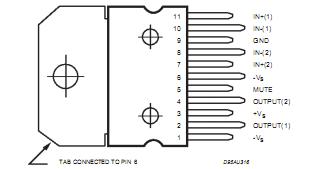

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	±22	V
IO	Output Peak Current (internally limited)	3	A
Ptot	Power Dissipation Tcase =70°C	40	W
Top	Operating Temperature	0 to 70	°C
Tstg, Tj	Storage and Junction Temperature	-40 to +150	°C

Description

 *The TDA7269 is class AB dual Audio power amplifier assembled in the Multiwatt package,
specially designed for high quality sound application as Hi-Fimusic centers and stereo TV sets.
