TDA7266P

Supply Current :
Maximum Power Dissipation :
Common Mode Rejection Ratio (Min) :
Packaging : Tube
THD plus Noise : 0.03 %
Maximum Operating Temperature : + 70 C
Output Type : 2-Channel Stereo
Mounting Style : Through Hole
Product : Class-AB
Available Set Gain : 26 dB
Operating Supply Voltage : 5 V, 9 V
Output Power : 4 W
Package / Case : PowerSSO-24


Features:

TECHNOLOGY BI20II
WIDE SUPPLY VOLTAGE RANGE (3.5 - 12V)
OUTPUT POWER:
   3+3W @THD = 10%, RL = 8Ω, VCC = 7.5V
   4+4W Music Power @THD = 10%, RL = 8Ω,
    VCC = 8.5V
SINGLE SUPPLY
MINIMUM EXTERNAL COMPONENTS:
  NO SVR CAPACITOR
  NO BOOTSTRAP
  NO BOUCHEROT CELLS
  INTERNALLY FIXED GAIN
STAND-BY & MUTE FUNCTIONS
SHORT CIRCUIT PROTECTION
THERMAL OVERLOAD PROTECTION

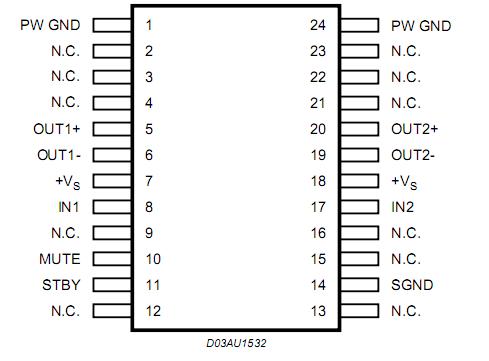

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vs	Supply Voltage	20	V
IO	Output Peak Current (internally limited)	1.5	A
Top	Operating Temperature	0 to 70	°C
Tstg, Tj	Storage and Junction Temperature	-40 to 150	°C

Description

*The TDA7266P is a dual bridge amplifier specially designed for LCD TV/Monitor,
  PC Motherboard, TV and Portable Audio applications.
