TDA7266M

Common Mode Rejection Ratio (Min) :
Supply Current :
Packaging : Tube
Maximum Operating Temperature : + 70 C
Mounting Style : Through Hole
THD plus Noise : 0.05 %
Output Type : 1-Channel Mono
Product : Class-AB
Available Set Gain : 26 dB
Maximum Power Dissipation : 33000 mW
Output Power : 7 W
Operating Supply Voltage : 11 V
Package / Case : MULTIWATT V


Features:

*WIDE SUPPLY VOLTAGE RANGE (3-18V)
*MINIMUMEXTERNAL COMPONENTS
   NOSWR CAPACITOR
   NOBOOTSTRAP
   NOBOUCHEROT CELLS
   INTERNALLY FIXED GAIN
*STAND-BY & MUTE FUNCTIONS
*SHORT CIRCUIT PROTECTION
*THERMALOVERLOAD PROTECTION

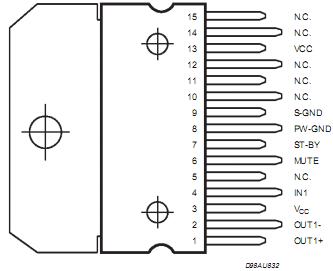

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	20	V
IO	Output Peak Current (internally limited)	2	A
Ptot	Total Power Dissipation (Tcase = 70°C)	33	W
Top	Operating Temperature	0 to 70	°C
Tstg, Tj	Storage and Junction Temperature	-40 to +150	°C

Description

*The TDA7266M is a mono bridge amplifier specially
   designed for TV and Portable Radio  applications.
