TDA7262

Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Output Type : 2-Channel Stereo
Mounting Style : Through Hole
THD plus Noise : 0.2 %
Output Power : 30 W
Available Set Gain : 36 dB
Product : Class-AB
Supply Current : 3.5 A
Package / Case : Multiwatt-11
Operating Supply Voltage : 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
Maximum Power Dissipation : 30000 mW


Features:

WIDESUPPLYVOLTAGERANGE
HIGHOUTPUTPOWER
28+28WTYP. MUSIC POWER
20+20W@THD= 10%, R_L =4  ,V_S=28V
HIGH CURRENT CAPABILITY(UP TO3.5A)
STAND-BY FUNCTION
AC SHORT CIRCUIT PROTECTION
THERMAL OVERLOAD PROTECTION

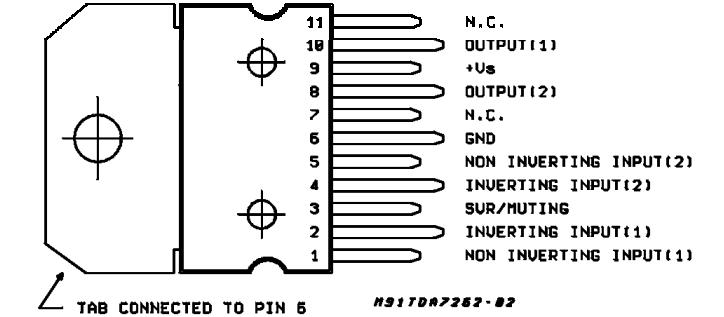

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	35	V
IO	Output Peak Current(repetitive f > 20Hz)	3.5	A
IO	Output Peak Current(non repetitive,t > 100s)	4.5	A
Ptot	Power Dissipation (Tcase =70°C)	30	W
Tstg,Tj	Storage and JunctionTemperature	-40 to 150	°C

Description

The TDA7262is class AB dual Hi-Fi Audio power amplifier assembled in Multiwatt package, specilally designed for high quality stereo application
as Hi-Fimusic centers and TV sets.
