TDA7261

Common Mode Rejection Ratio (Min) :
Packaging : Tube
THD plus Noise : 0.03 %
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Available Set Gain : 30 dB
Output Type : 1-Channel Mono
Product : Class-AB
Maximum Power Dissipation : 30000 mW
Supply Current : 4.5 A
Operating Supply Voltage : 50 V
Package / Case : Multiwatt-8
Output Power : 32 W


Features:

*WIDE SUPPLY VOLTAGE RANGE (UP TO
   50V ABS MAX.)
*SPLIT SUPPLY
*HIGH OUTPUT POWER:
   25W @ THD =10%, RL =8Ω,VS = +20V
*NO POP AT TURN-ON/OFF
*MUTE (POP FREE)
*STAND-BY FEATURE (LOWIQ)
*FEWEXTERNAL COMPONENTS
*SHORT CIRCUIT PROTECTION
*THERMALOVERLOAD PROTECTION

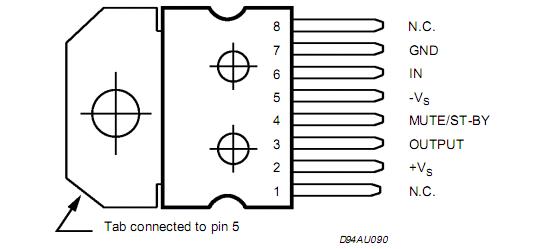

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	DC Supply Voltage	50	V
IO	Output Peak Current (internally limited)	4.5	A
Ptot	Power Dissipation Tcase =70°C	30	W
Tstg,Tj	Storage and Junction Temperature	-40 to +150	°C

Description

*The TDA7261 is class AB Audio power amplifier assembled in the Multiwatt package,
    specially designed for high quality sound application in mono TV chassis.
