Product Details

Description

Features:

OPERATINGVOLTAGE1.8 TO 15V
EXTERNAL MUTE OR POWER DOWN
FUNCTION
IMPROVED SUPPLY VOL TAGE REJECTION
LOW QUIESCENT CURRENT
HIGH POWER CAPABILITY
LOW CROSSOVER DISTORTION

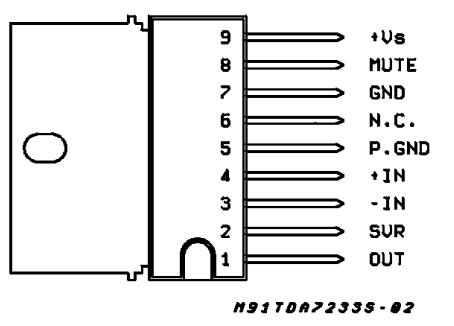

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	16	V
IO	Output Peak Current	1	A
Ptot	TotalPower Dissipation Tamb =50	1	W
Tstg ,Tj	Storage andJunction Temperature	-40 to 150

Description

The TDA7233S is a monolithic integrated circuit in SIP9, intendedfor use as class AB power amplifier with a wide range of supply voltage from
1.8V to 15V in portableradios, cassette recorders and players.
