Product Details

Description

Features:

.BUILT-IN FM F/E, AM/FM IF AND FM MPX
.AM DETECTOR COIL AND IF COUPLING CAPACITOR ARE NOT NEEDED
.COMPACT PACKAGE: 24-Pin Shrink
.OPERATING SUPPLY VOLTAGE RANGE
V_CC _(opr) =1.8 to 7.0 V(T_A =25 )
.LED DRIVE CIRCUIT FOR TUNING INDICATION

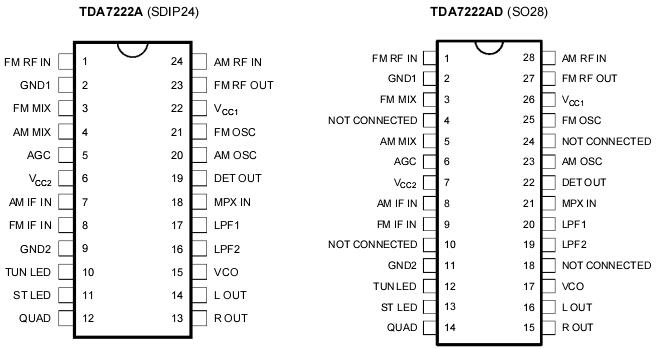

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	9	V
ILED	LED Current	10	mA
VLED	LED Voltage	10	V
Toper	Operating Temperature	-20, +70
Tstg	Storage Temperature	-55,+150

Description

TDA7222A and TDA7222AD are AM/FM chip tuner ICs,which are designed for portable radios and 3V
headphone radios.
