Product Details

Description



Features:

* No external components
* No switch-on and off clicks
* Good overall stability
* Low power consumption
* Short-circuit proof
* Low HF radiation
* ESD protected on all pins.

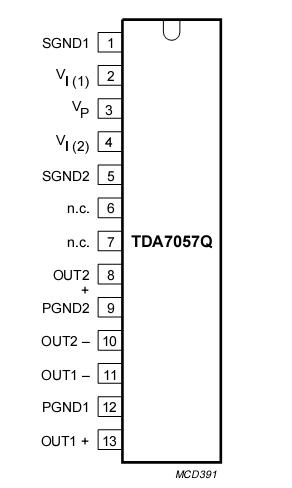

Pinout

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VP
positive supply voltage range
18
V
IORM
repetitive peak output current
1
A
IOSM
non repetitive peak output current
1.5
A
Ptot
total power dissipation
T case< 60 °C
9
W
Tstg
storage temperature range
-55
+150
°C
Tvj
virtual junction temperature
+150
°C
Tsc
short-circuit time
see note 1
1
hr



Description

The TDA7057Q is a stereo output amplifier in a 13 pin power package. The device is designed for battery-fed portable stereo recorders and radios, but also suitable for mains-fed applications.
