Product Details

Description



Features:

* DC volume control
* Few external components
* Mute mode
* Thermal protection
* Short-circuit proof
* No switch-on or switch-off clicks
* Good overall stability
* Low power consumption
* Low HF radiation
* ESD protected on all pins.

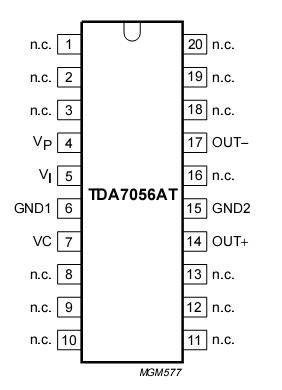

Pinout

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VP
supply voltage
18
V
V5, 7
input voltage pins 5 and 7
5
V
IORM
repetitive peak output current
1.25
A
IOSM
non-repetitive peak output current
1.5
A
Ptot
total power dissipation
Tcase < 60 °C
1.5
W
Tamb
operating ambient temperature
-40
+85
°C
Tstg
storage temperature
-55
+150
°C
Tvj
virtual junction temperature
150
°C
tsc
short-circuit time
1
h



Description

The TDA7056AT is a mono Bridge-Tied Load (BTL) output   amplifier with DC volume control. It is designed for use in  TVs and monitors, but is also suitable for battery-fed  portable recorders and radios. The TDA7056AT is contained in a 20-lead small outline package.


A Missing Current Limiter (MCL) is built in. The MCL circuit of TDA7056AT is activated when the difference in current between the  output terminal of each amplifier exceeds 100 mA  (300 mA typ.). This level of 100 mA allows for  Single-Ended (SE) headphone applications.
