Description



Features:

The TDA 6811 contains I2C Bus controlled functions, which are required as a supplement to a Dolby surround sound audio system. The circuit is divided into two functional blocks:




Pinout

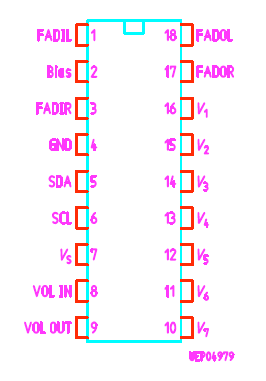

Connection Diagram


Specifications

TA = 0 to 70 °C
Parameter Symbol Limit Values Unit Remarks
min. max.
Supply voltage V7 0 14 V
Max. DC voltage V1 0 V7 V
Max. DC voltage V2 0 V7 V
Max. DC voltage V6 0 V7 V
Max. DC voltage V8 0 V7 V
Max. DC current I5 0 3 mA
Max. DC current I9 0 2 mA
Max. DC current I10 0 3 mA
Max. DC current I11 0 3 mA
Max. DC current I12 0 3 mA
Max. DC current I13 0 3 mA
Max. DC current I14 0 3 mA
Max. DC current I15 0 3 mA
Max. DC current I16 0 3 mA
Max. DC current I17 0 2 mA
Max. DC current I18 0 2 mA
ESD voltage VESD -2 2 kV HBM (R = 1.5 kW, C = 100 pF)
Junction temperature TJ   150 °C
Storage temperature TSTG -40 125 °C
Termal resistance
(system-air)		 RTHSA   68 K/W
Operating Range
Supply voltage VS 10 13.2 v
Ambient temperature TA 0 70 °C
Input frequency range f1 0.01 20 kHz
