TDA6500

Features:

`Single-chip, 5 V mixer/oscillator and synthesizer for TV and VCR tuners
`I²C-bus protocol compatible with 3.3 V and 5 V microcontrollers:
              -Address + 6 data bytes transmission
              -Address + 1 status byte (I2C-bus read mode)
              -Four independent I2C-bus addresses
`Two PMOS open-drain ports with 5 mA source capability to switch high band and FM sound trap (P2 and P3)
`One PMOS open-drain port P1 with 20 mA source capability to switch the mid band
`One PMOS open-drain port P0 with 10 mA source capability to switch the low band
`Five step, 3-bit Analog-to-Digital Converter (ADC) and NPN open-collector general purpose port P6 with 5 mA sinking capability
`NPN open-collector general purpose port P4 with 5 mA sinking capability
`Internal AGC flag
`In-lock flag
`33 V tuning voltage output
`15-bit programmable divider
`Programmable reference divider ratio: 64, 80 or 128
`Programmable charge pump current: 60 mA or 280 mA
`Varicap drive disable
`Balanced mixer with a common emitter input for the low band (single input)
`Balanced mixer with a common base input for the mid and high bands (balanced input)
`2-pin asymmetrical oscillator for the low band
`2-pin asymmetrical oscillator for the mid band
`4-pin symmetrical oscillator for the high band
`IF preamplifier with asymmetrical 75 W output impedance to drive a SAW filter (500 W/40 pF)
`Wide-band AGC detector for internal tuner AGC:
              -Five programmable take-over points
              -Two programmable time constants


Application

·TV and VCR tuners
·Specially suited for switched concepts, all systems
·Specially suited for strong off-air reception

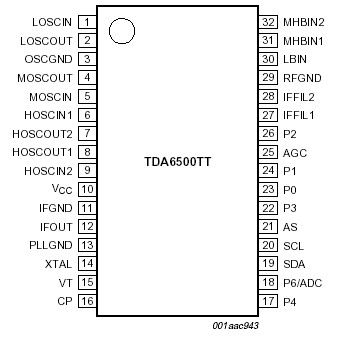

Pinout




Specifications

Symbol	Parameter	Conditions	Min	Max	Unit
VCC	supply voltage		-0.3	+6	V
VXTAL	crystal input voltage		-0.3	VCC + 0.3	V
VP6/ADC	NPN port input and output voltage		-0.3	VCC + 0.3	V
IP6/ADC	NPN port output current (open-collector)		0	10	mA
VVT	tuning voltage output		-0.3	+35	V
VCP	charge pump output voltage		-0.3	VCC + 0.3	V
VP4	NPN port output voltage (open-collector)		-0.3	VCC + 0.3	V
IP4	NPN port output current (open-collector)		0	10	mA
VSDA	serial data input/output voltage		-0.3	+6	V
ISDA	serial data output current		-1	+10	mA
VSCL	serial clock input voltage		-0.3	+6	V
VAS	address selection input voltage		-0.3	VCC + 0.3	V
VPn	PMOS port output voltage (open-drain)		-0.3	VCC + 0.3	V
IP1	PMOS port output current (open-drain)		-25	0	mA
IP0	PMOS port output current (open-drain)		-15	0	mA
IP2, IP3	PMOS port output current (open-drain)		-10	0	mA
Tstg	storage temperature		-40	+150
Tamb	ambient temperature		-20	+85
Tj	junction temperature		-	150

Description

TDA6500TT and TDA6501TT are programmable 2-mixer, 3-oscillator and synthesizer MOPLLs intended for pure 3-band tuner concepts.

The TDA6500TT and TDA6501TT include two double balanced mixers for the low and mid/high bands and three oscillators for the low, mid and high bands, respectively. Other functions of TDA6500TT and TDA6501TT are an IF amplifier, a wide-band AGC detector and a PLL synthesizer. Two pins are available between the mixer output and the IF amplifier input to enable IF filtering for improved signal handling.

The TDA6500TT and TDA6501TT can be controlled according to the I2C-bus format.
