TDA6170X

Features:

· Fast I2C-bus controlled (max. 400 kHz)
· PLL controlled sound IF tuning with
   10 kHz stepwidth
· Second order high-pass mixer input
· IF MUX for 10.7 MHz
   broad / small IF filters
· Two identical high sensitive alignment free
    FM demodulators
· Original Wegener PANDA 1TM expander
· Volume control for individual settings
· 50 ms / 75 ms / J17 de-emphasis for main
    sound reception
· Fully ESD protection

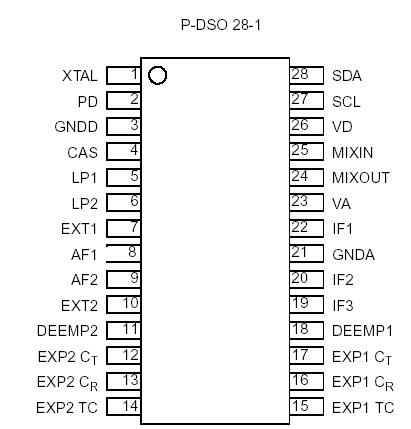

Pinout




Specifications

Parameter	Symbol	Limit Values		Unit	Test Conditions
		min	max
Supply voltage (digital)	VVD	0	6	V
Supply voltage (analog)	VVA	0	13.2	V
Mixer input	VMIXIN	-0.3	13.2	V
IF inputs	VIF	-0.3	1	V
Crystal oscillatorl	VXTAL	0	1.5	V
SDA; SCL; CAS	V	-0.3	6	V
Junction temperature	Tj	0	150	°C
Storage temperature	Tstg	0	125	°C
Thermal resistance	Rth j-a		75	K/W
ESD-Protection	VESD		2	kV

Description

Multistandard satellite sound IF TDA6170X consisting of a mixer and a voltage controlled oscillator (VCO) as a frequency converter that can be continuously tuned in 10 kHz increments with crystal accuracy by means of a PLL, two FM limiter amplifiers with PLL FM demodulators followed by two Wegener PANDA1TM expanders. The AF TDA6170X signal passes through two switches. Each switch can select the AF sources and the mono / stereo mode the de-emphasis networks together with the two following volume control stages with audio buffers. In front of one FM section an IF multiplexer is used to select the IF bandwidth. The switching functions and settings of the PLL TDA6170X are controlled by an I2C-bus.
