TDA6151-5X

Features:

*Adjustable gain for different FM deviations
*Video buffer and special baseband output for the sound
   processor SDA 6102-5X are available
*Clamping circuit for elimination of "Energy Dispersal"
   signal
*Built-in video switch for external applied video signal
* Application in satellite receiving systems.

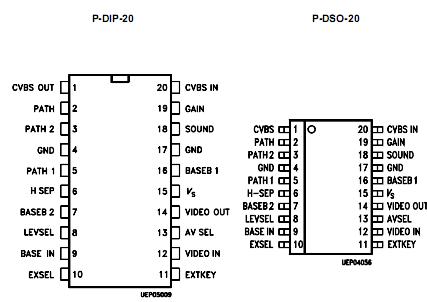

Pinout




Specifications

Parameter	Symbol	Limit Values		Unit
		min.	max.
Supply voltage	V15	0	15	V
Buffer output current (de-emphasis)	I1	3	5	mA
Voltage on sound IF output	V18		16	V
Video buffer output currents	I14, 16	-3	5	mA
Setting voltages for gain adjust	V2, 19	0	6	V
Switching voltages for video switch	V13	0	6	V
Junction temperature	Tj		150	°C
Storage temperature	Tstg	-40	125	°C
Thermal resistance system air	Rth SA		65/77*	K/W

Description

The demodulated FM-satellite video signal TDA6151-5X is fed via a buffer amplifier to a gain controlled amplifier. The gain control is done using an external applied DC-voltage. The output signal of this amplifier TDA6151-5X is used to drive three separate signal pathes. First of all the baseband is fed via a high pass filter with a cut off frequency of approx. 4 MHz to the input of a SAT-TV-sound processor, e.g. TDA 6160 X. A second output with a buffer amplifier TDA6151-5X is used to drive two external de-emphasis networks. After passing through the de-emphasis networks the baseband signals are fed into two inputs of the de-
