Features:

· A wide range of supply voltage
· Few external components
· High conversion transconductance
· Wide range of input signal


Pinout

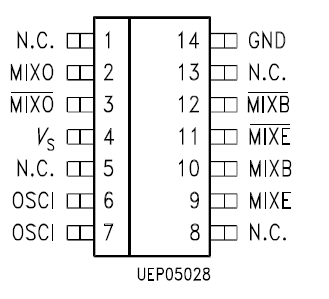

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit
min. max.
Supply voltage V4 0 8 V
Mixer output V2, 3 1 8 V
Oscillator input V6, 7 0 2.5 V
Mixer input emitter V9, 11 0.8 3.5
Mixer input base V10, 12 0 V4 1.5 V
Junction temperature Tj   125 oC
Storage temperature Tstg -40 150 oC
Thermal resistance Rth SA   125 K/W
Operating Range
Supply voltage VS 4 7 V
Input frequency range f15   2000 MHz
Ambient temperature
in operation		 TA 0 70 oC







Description

The pins 1, 5, 8, 13 should be connected to pin 14 (ground) to reach optimal HF features. A galvanic TDA6130-5X4 connection between pins 6 and 7 and 10 and 12 through coupling windings is recommended.

A resistor TDA6130-5X4 of at least 220 W may be connected between pins 9 and 14 (ground) and between 11 and 14 to increase the currents and thus the conversion transconductance.

Pins 9 and 11 may be connected through any impedance. In case of a direct connection between pin 9 and 11, the resistance TDA6130-5X4 from this pin to 14 may be at least 100 W. Depending on the layout, a capacitor TDA6130-5X4 may be required between pins 6 and 7 to prevent oscillations in the UHF band.
