TDA6108JF

Features:

· Typical bandwidth of 9.0 MHz for an output signal of
    60 V (p-p)
· High slew rate of 1850 V/ms
· No external components required
· Very simple application
· Single supply voltage of 200 V
· Internal reference voltage of 2.5 V
· Fixed gain of 51
· Black-Current Stabilization (BCS) circuit
· Thermal protection.

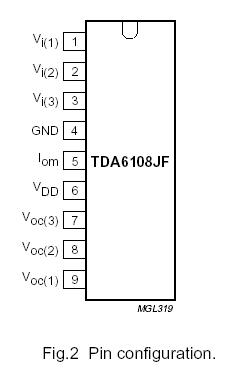

Pinout




Description

The TDA6108JF includes three video output amplifiers in one plastic DIL-bent-SIL 9-pin medium power (DBS9MPF) package (SOT111-1), using high-voltage DMOS technology, and is intended to drive the three cathodes of a colour CRT directly. To obtain maximum performance, the amplifier TDA6108JF should be used with black-current control.
