TDA6107JF

Features:

· Typical bandwidth of 5.5 MHz for an output signal of
    60 V (p-p)
· High slew rate of 900 V/ms
· No external components required
· Very simple application
· Single supply voltage of 200 V
· Internal reference voltage of 2.5 V
· Fixed gain of 50
· Black-Current Stabilization (BCS) circuit with voltage
    window from 1.8 to 6 V and current window from
    -100 mA to 10 mA
· Thermal protection
· Internal protection against positive flashover discharges
    appearing on the CRT.

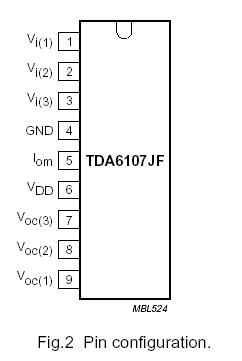

Pinout




Description

The TDA6107JF includes three video output amplifiers and is intended to drive the three cathodes of a colour CRT directly. The TDA6107JF is contained in a plastic DIL-bent-SIL 9-pin medium power (DBS9MPF) package, and uses high-voltage DMOS technology.

To obtain maximum performance, the amplifier TDA6107JF should be used with black-current control.
