TDA6106Q

Features: · No external heatsink required· Black current measurement output for Automatic Black current Stabilization (ABS)· Internal 2.5 V reference circuit· Internal protection against positive appearing CRT flashover discharges· Single supply voltage of 200 V· Simple application with a variety ...

product image

TDA6106Q Picture
See larger image
SeekIC No. : 004516474 Detail

TDA6106Q: Features: · No external heatsink required· Black current measurement output for Automatic Black current Stabilization (ABS)· Internal 2.5 V reference circuit· Internal protection against positive ap...

TDA6106Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA6106Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· No external heatsink required
· Black current measurement output for Automatic Black current Stabilization (ABS)
· Internal 2.5 V reference circuit
· Internal protection against positive appearing CRT flashover discharges
· Single supply voltage of 200 V
· Simple application with a variety of colour decoders
· Controlled switch-off behaviour.


Pinout

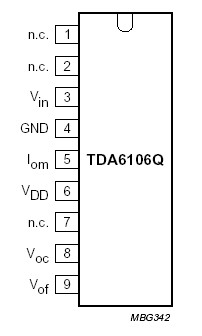

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD supply voltage   0 250 V
Vin inverting input voltage   0 8 V
Vom black current measurement output voltage   0 6 V
Voc
 cathode DC output voltage   0 VDD V
Vof feedback output voltage   0 VDD V
Ioc(l) low non-repetitive peak cathode output
current		 flashover discharge = 100 C;
note 1		 0 5 A
Ioc(h) high non-repetitive peak cathode output
current		 flashover discharge = 100 nC;
note 2		 0 10 A
Pmax maximum power dissipation   0 tbf W
Tstg storage temperature   -55 +150
Tj junction temperature   -20 +150
Vesd electrostatic discharge note 3 -2000 +2000 V
note 4 -300 +300 V



Description

The TDA6106Q is a monolithic video output amplifier with a 6 MHz bandwidth and is contained in a 9-lead plastic DIL-bent-SIL medium power package. The TDA6106Q uses high-voltage DMOS technology and is intended to drive the cathode of a CRT. To obtain maximum performance, the amplifier should be used with black current control.
