TDA5732M

Features:

` Balanced mixer with a common emitter input for band A
` 2-pin oscillator for band A
` Balanced mixer with a common base input for band C
` 4-pin oscillator for band C
` Local oscillator buffer output for external prescaler
` SAW filter preamplifier with a low output impedance of 75
` Band gap voltage stabilizer for oscillator stability
` Electronic band switch
` External IF filter connected between the mixer output and the IF amplifier input.


Application

· 2-band TV tuners
· 2-band VCR tuners.

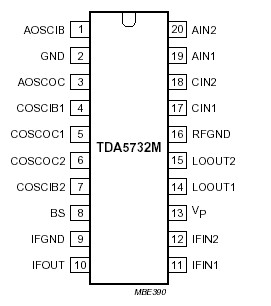

Pinout




Specifications

SYMBOL	PARAMETER	MIN.	MAX/	UNIT
VP	supply voltage	-0.3	+7.0	V
VP(op)	operating supply voltage	4.5	5.5	V
Vn(max)	maximum voltage on each pin with a 22 k resistor connected in series	-	35	V
VSW	switching voltage	0	7.0	V
Tstg	storage temperature	-55	+150
Tamb	operating ambient temperature	-20	+85
Tj	junction temperature	-	+150

Description

The TDA5732M is a monolithic integrated circuit that performs VHF I, VHF III, hyperband and UHF mixer/oscillator functions in TV and VCR tuners. This low-power mixer/oscillator requires a power supply of 5 V and is available in a very small package.

The TDA5732M gives the designer the capability to design an economical and physically small 2-band tuner.

The tuner development time of TDA5732M can be drastically reduced by using this device.
