Product Details

Description



Features:

· Balanced mixer with a common base input
· 4-pin oscillator
· Local oscillator buffer output for external prescaler
· SAW filter preamplifier with a low output impedance to drive the SAW filter directly
· Band gap voltage stabilizer for oscillator stability
· External IF filter between the mixer output and the IF amplifier input.


Application

· UHF tuners for TV and VCR
· One band tuners.

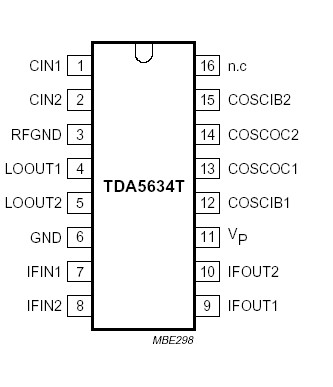

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VP
IO
tsc
Tstg
Tamb
Tj		 supply voltage
output current of each pin referenced to ground
maximum short-circuit time (all pins)
IC storage temperature
operating ambient temperature
junction temperature		 -0.3
-
-
-55
-10
-		 +10.5
-10
10
+150
+80
+150		 V
mA
s
°C
°C
°C



Description

The TDA5634T is an integrated circuit that performs the UHF mixer/oscillator functions in TV and VCR tuners. This low-power mixer/oscillator requires a power supply of 9 V and is available in a very small package.

The TDA5634T gives the designer the capability to design an economical and physically small tuner.

The tuner development time can be drastically reduced by using TDA5634T. The frequency band is determined by the external tank circuit. It can be adapted to various standards.
