TDA5330T

Features:

· Balanced mixer with a common emitter input for band A
· Amplitude-controlled oscillator for band A
· Balanced mixer with common base input for band B and C
· Balanced oscillator for band B and C
· Local oscillator buffer output for external prescaler
· SAW filter preamplifier with an output impedance of 100 W
· Bandgap voltage stabilizer for oscillator stability
· Electronic bandswitch

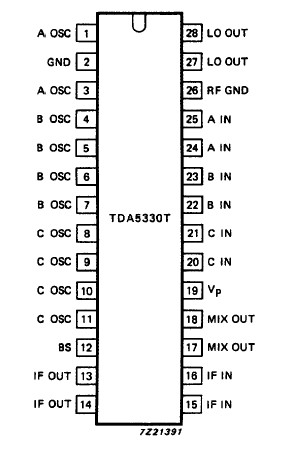

Pinout




Specifications

PARAMETER	CONDITIONS	SYMBOL	MIN.	MAX.	UNIT
Supply voltage		VP = V19-2, 26	-0.3	14	V
Switching voltage		V12	0	14	V
Output current of each pin to ground		IO	-	-10	mA
Maximum short-circuit time (all pins)		tSC	-	10	s
Storage temperature range		Tstg	-55	+150
Operating ambient temperature range		Tamb	-25	+80

Description

The TDA5330T is a monolithic integrated circuit that performs the band A, band B and band C mixer/oscillator functions in TV and VCR tuners. TDA5330T gives the designer the capability to design an economical and physically small 3-band tuner which will be capable of meeting the most stringent requirements e.g. FTZ or FCC. The tuner development time can be drastically reduced by using this device.
