Features:

·Full-wave commutation (using push/pull drivers at the output stages) without position sensors
·Built-in start-up circuit
·Optimum commutation independent on motor type or motor loading
·Built-in flyback diodes
·Three push-pull outputs:
         -0.85 A output current
         -built-in current limiter
·Thermal protection
·Low current consumption by adaptative base-drive
·Tacho output without extra sensor.
·Comparator for external position generator (PG) signal
·Built-in multiplexer combining internal FG and external PG signal on one pin for easy use with a controlling microprocessor
·Linear control of the output stages
·PG signal output.


Application

General purpose spindle driver ( e.g. VCR scanner motor).


Pinout

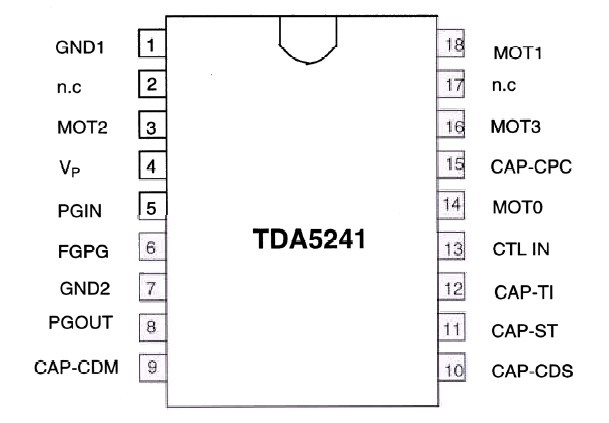

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
Vp supply voltage - 18 V
VI input voltage; all pins except Vp (VI < 8 V) -0.3 Vp + 0.5 V
Vo output voltage; PGOUT and PG/FG GND Vp V
Vo output voltage; MOTO, MOT1, MOT2 and MOT3 -1 Vp+VD V
VI input voltage; CAP-ST, CAP- TI, CAP-CD and CAP-DC - 2.5 V
Ptot total power dissipation - see power
derating
curve		 -
Tstg storage temperature range -55 +150
Tamb operating ambient temperature range -10 +70



Description

The TDA5241 is a bipolar integrated circuit used to drive brush less DC motors in full-wave mode. The device senses the rotor position using an EMF-sensing technique and is ideally suited as a drive circuit for VCR scanner motors.
