TDA5240T

Features: ·Full-wave commutation (using push/pull drivers at the output stages) without position sensors·Built-in start-up circuit·Optimum commutation independent on motor type or motor loading·Built-in flyback diodes·Three push-pull outputs: -0.85 A output current -built-in current limiter·Therma...

product image

TDA5240T Picture
See larger image
SeekIC No. : 004516434 Detail

TDA5240T: Features: ·Full-wave commutation (using push/pull drivers at the output stages) without position sensors·Built-in start-up circuit·Optimum commutation independent on motor type or motor loading·Buil...

TDA5240T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA5240T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Full-wave commutation (using push/pull drivers at the output stages) without position sensors
·Built-in start-up circuit
·Optimum commutation independent on motor type or motor loading
·Built-in flyback diodes
·Three push-pull outputs:
       -0.85 A output current
       -built-in current limiter
·Thermal protection
·Soft slope outputs for low radiation.
·Low current consumption by adaptative base-drive
·Tacho output without extra sensor.
·Comparator for external position generator (PG) signal
·Built-in multiplexer combining internal FG and external PG signal on one pin for easy use with a controlling microprocessor
·Linear control of the output stages
·PG signal output.



Application

·General purpose spindle driver ( e.g. VCR scanner motor).


Pinout

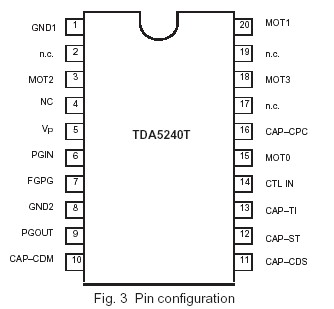

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
Vp supply voltage - 18 V
VI input voltage; all pins except Vp (VI < 8 V) -0.3 Vp + 0.5 V
Vo output voltage; PGOUT and PG/FG GND Vp V
Vo output voltage; MOTO, MOT1, MOT2 and MOT3 -1 Vp+VD V
VI input voltage; CAP-ST, CAP- TI, CAP-CD and CAP-DC - 2.5 V
Ptot I total power dissipation - see power
derating
curve		 -
Tstg storage temperature range -55 +150
Tamb operating ambient temperature range -10 +70



Description

The TDA5240T is a bipolar integrated circuit used to drive brushless DC motors in full-wave mode. The device senses the rotor position using an EMF-sensing technique and is ideally suited as a drive circuit for VCR scanner motors.
