TDA5200

RF Receiver CNTRL RF RECEIVER 870MHZ 5V

product image

TDA5200 Picture
See larger image
SeekIC No. : 00614190 Detail

TDA5200: RF Receiver CNTRL RF RECEIVER 870MHZ 5V

TDA5200 Data Sheet

floor Price/Ceiling Price

US $ .75~.84 / Piece | Get Latest Price
Part Number:
TDA5200
Mfg:
Infineon Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 0~2080
  • 2080~3000
  • 3000~6000
  • Unit Price
  • $.84
  • $.78
  • $.75
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Receiver Package / Case : TSSOP-28
Operating Frequency : 870 MHz Operating Supply Voltage : 5 V
Packaging : Reel

Description

Packaging : Reel
Type : Receiver
Package / Case : TSSOP-28
Operating Supply Voltage : 5 V
Operating Frequency : 870 MHz


Features:

`Low supply current (Is = 4.8mA typ. at 868MHz, Is = 4.6mA typ. at 434MHz)
`Supply voltage range 5V ±10%
`Power down mode with very low supply current (50nA typ)
`Fully integrated VCO and PLL Synthesiser
`RF input sensitivity < 107dBm
`Selectable frequency ranges 868-870 MHz and 433-435 MHz
`Limiter with RSSI generation, operating at 10.7MHz
`Selectable reference frequency
`2nd order low pass data filter with external capacitors
`Data slicer with self-adjusting threshold


Application

·Keyless Entry Systems
·Remote Control Systems
·Alarm Systems
·Low Bitrate Communication Systems

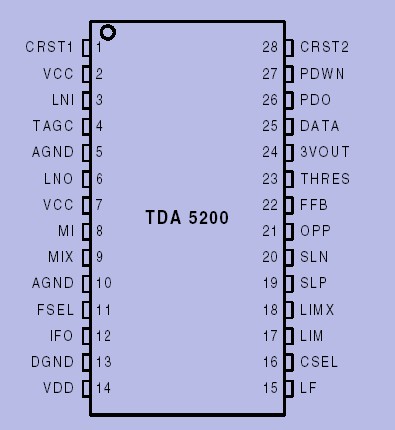

Pinout

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Remarks
min max
Supply Voltage Vs -0.3 5.5 V
Junction Temperature Tj -40 +150
Storage Temperature Ts -40 +125
Thermal Resistance RthJA   114 K/W
ESD integrity, all pins VESD -1 +1 kV HBM
according to
MIL STD
883D,
method
3015.7



Description

The TDA5200 is a very low power consumption single chip ASK Single Conversion Receiver for the frequency bands 868-870 MHz and 433-435 MHz. The IC offers a high level of integration and needs only a few external components.

The TDA5200 contains a low noise amplifier (LNA), a double balanced mixer, a fully integrated VCO, a PLL synthesiser, a crystal oscillator, a  imiter with RSSI generator, a data filter, a data comparator (slicer) and a peak detector. Additionally there is a power down feature to save battery life.




Parameters:

Technical/Catalog InformationTDA5200
VendorInfineon Technologies
CategoryRF and RFID
ApplicationsAlarm Systems, Communication Systems
Current - Receiving4.8mA
Features-
Data Rate - Maximum-
Operating Temperature-40°C ~ 85°C
Package / Case28-TSSOP
PackagingTape & Reel (TR)
Sensitivity-107dBm
Modulation or ProtocolASK
Voltage - Supply4.5 V ~ 5.5 V
Frequency433MHz, 868MHz
Memory Size-
Data InterfacePCB, Surface Mount
Antenna ConnectorPCB, Surface Mount
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names TDA5200
TDA5200
TDA5200INTR ND
TDA5200INTRND
TDA5200INTR
