TDA5145

Features: ` Full-wave commutation (using push/pull drivers at the output stages) without position sensors` Built-in start-up circuitry` Three push-pull outputs: output current 2.0 A (typ.) built-in current limiter soft-switching outputs for low Electromagnetic Interference (EMI)` Thermal protec...

product image

TDA5145 Picture
See larger image
SeekIC No. : 004516426 Detail

TDA5145: Features: ` Full-wave commutation (using push/pull drivers at the output stages) without position sensors` Built-in start-up circuitry` Three push-pull outputs: output current 2.0 A (typ.) built-i...

TDA5145 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA5145
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Full-wave commutation (using push/pull drivers at the output stages) without position sensors
` Built-in start-up circuitry
` Three push-pull outputs:
          output current 2.0 A (typ.)
          built-in current limiter
          soft-switching outputs for low Electromagnetic Interference (EMI)
` Thermal protection
` Flyback diodes
` Tacho output without extra sensor
` Motor brake facility
` Direction control input
` Reset function
` Transconductance amplifier for an external control transistor.


Application

` General purpose spindle driver e.g.:
        Hard disk drive
        Tape drive
        Optical disk drive.

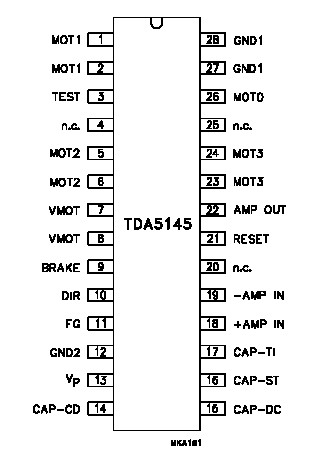

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP
 supply voltage   - 18 V
VI input voltage; all pins except
VMOT		 VI < 18 V -0.3 VP + 0.5 V
VVMOT VMOT input voltage   -0.5 17 V
VO output voltage
AMP OUT and FG
MOT0, MOT1, MOT2 and MOT3		   GND
-1		 VP
VVMOT + VDHF		 V
V
VI input voltage CAP-ST, CAP-TI,
CAP-CD and CAP-DC		   - 2.5 V
Tstg storage temperature   -55 +150
Tamb
 operating ambient temperature   0 +70
Ptot total power dissipation see Figs 3 and 4 - - W
Ves electrostatic handling see Chapter "Handling" - 2000 V



Description

The TDA5145 is a bipolar integrated circuit used to drive 3-phase brushless DC motors in full-wave mode. The device is sensorless (saving of 3 hall-sensors) using the back-EMF sensing technique to sense the rotor position.

TDA5145 includes bidirectional control, brake function and has a special circuit built-in to reduce the EMI (soft switching output stages).
