Product Details

Description



Features:

` Full-wave commutation (using push/pull drivers at the output stages) without position sensors
` Built-in start-up circuitry
` Three push-pull outputs:
       output current 0.85 A (typ.)
       low saturation voltage
       built-in current limiter
       soft-switching outputs for low Electromagnetic Interference (EMI)
` Thermal protection
` Flyback diodes
` Tacho output without extra sensor
` Transconductance amplifier for an external control transistor.




Application

· General purpose spindle driver (e.g. for hard disk)
· Laser beam printer.


Pinout

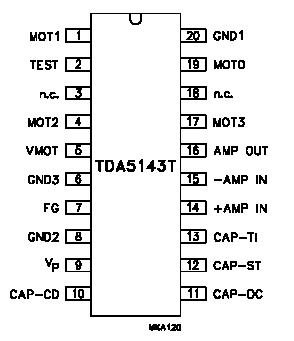

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP
 supply voltage   - 18 V
VI input voltage; all pins except
VMOT		 VI < 18 V -0.3 VP + 0.5 V
VVMOT VMOT input voltage   -0.5 17 V
VO output voltage
AMP OUT and FG
MOT0, MOT1, MOT2 and MOT3		   GND
-1		 VP
VVMOT + VDHF		 V
V
VI input voltage CAP-ST, CAP-TI,
CAP-CD and CAP-DC		   - 2.5 V
Tstg storage temperature   -55 +150
Tamb
 operating ambient temperature   0 +70
Ptot total power dissipation see Fig.3 - - W
Ves electrostatic handling see Chapter "Handling" - 500 V



Description

The TDA5143T is a bipolar integrated circuit used to drive 3-phase brushless DC motors in full-wave mode. The device is sensorless (saving of 3 hall-sensors) using the back-EMF sensing technique to sense the rotor position.

A special circuit is built-in to reduce the EMI (soft switching output stages). TDA5143T is ideally suited as a drive circuit for hard disk drive spindle motor as well as other applications (e.g. laser beam printer).
