Part Number:: TDA5101A
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/9/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

TDA5051 evaluate
Features: · Full digital carrier generation and shaping· Modulation/demodulation frequency set by ...
TDA5051A evaluate
Features: · Full digital carrier generation and shaping· Modulation/demodulation frequency set by ...
TDA5051AT/C1,512 evaluate
US $2.27 - 3.07 / Piece

RF Wireless Misc HOME AUTOMATION MODM

Product Details

Description

Features:

·fully integrated frequency synthesizer
·VCO without external components
·high efficiency power amplifier
·frequency range 315 MHz
·ASK modulation
·low supply current (typically < 7mA)
·voltage supply range 2.1 - 4 V
·power down mode
·low voltage sensor
·low external component count

Application

·Keyless entry systems
·Remote control systems
·Alarm systems
·Communication systems

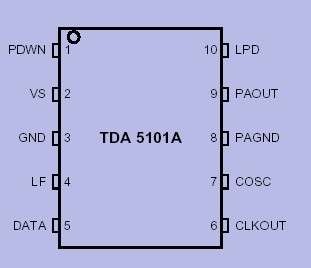

Pinout

Connection Diagram

Specifications

Parameter	Symbol	Limit Values		Unit	Remarks
Parameter	Symbol	Min	Max	Unit	Remarks
Junction Temperature	T_J	-40	150
Storage Temperature	T_s	-40	125
Thermal Resistance	R_thSA		tbd.	K/W
ESD integrity, all pins	V_ESD	-1	+1	kV	100pF, 1500

Description

The TDA5101A is a single chip ASK transmitter for the frequency band 315 MHz. The IC offers a high level of integration and needs only a few external components. The TDA5101A contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna. A special circuit design and an unique power amplifier design are used to save current consumption and therefore to save battery live. Additionally features like a power down mode, a low power detect and a divided clock output are implemented.
