TDA5100A

Features: ·fully integrated frequency synthesizer·VCO without external components·high efficiency power amplifier·frequency range 433-435 MHz·ASK modulation·low supply current (typically 7 mA)·voltage supply range 2.1 - 4 V·power down mode·low voltage sensor·clock output for µC·low external ...

product image

TDA5100A Picture
See larger image
SeekIC No. : 004516419 Detail

TDA5100A: Features: ·fully integrated frequency synthesizer·VCO without external components·high efficiency power amplifier·frequency range 433-435 MHz·ASK modulation·low supply current (typically 7 mA)·volta...

TDA5100A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA5100A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·fully integrated frequency synthesizer
·VCO without external components
·high efficiency power amplifier
·frequency range 433-435 MHz
·ASK modulation
·low supply current (typically 7 mA)
·voltage supply range 2.1 - 4 V
·power down mode
·low voltage sensor
·clock output for µC
·low external component count


Application

·Keyless entry systems
·Remote control systems
·Alarm systems
·Communication systems


Pinout

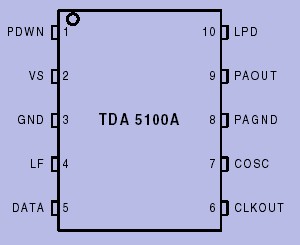

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Remarks
Min Max
Junction Temperature TJ -40 150
Storage Temperature Ts -40 125
Thermal Resistance RthJA   220 K/W
ESD integrity, all pins VESD -1 +1 kV 100pF, 1500



Description

The TDA 5100A is a single chip ASK transmitter for the frequency band 433- 435 MHz. The IC offers a high level of integration and needs only a few external components. The TDA 5100A contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna. A special circuit design and an unique power amplifier design are used to save current consumption and therefore to save battery life. Additional features like a power down mode, a low power detect and a divided clock output are implemented.
