Product Details

Description



Features:

.SUPPLY VOLTAGE DOWN TO3 V
.HIGH SVR
.LOW CROSSOVERDISTORTION
.LOW QUIESCENT CURRENT
·BRIDGE ORSTEREO CONFIGURATION

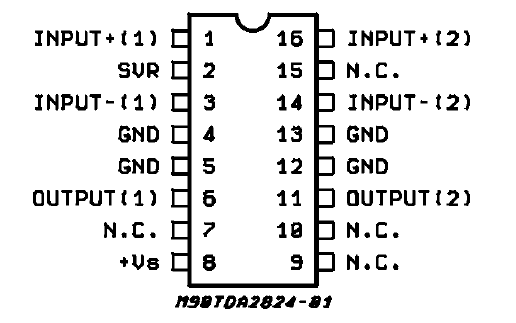

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VS Parameter 16 V
IO Output Peak Current 1.5 A
Ptot Total Power Dissipation at Tamb = 50°C
Tamb = 70°C		 1.25
4		 W
W
Tstg, Tj Storage and Junction Temperature -40 to 150



Description

The TDA2824 is a monolithic integrated circuit in 12+2+2 powerdip, intended for use as dual audio power amplifier in portable radios and TV sets.
