Product Details

Description



Features:

· Requires very few external components
· No switch-on/switch-off clicks
· Input mute during switch-on and switch-off
· Low offset voltage between output and ground
· Hi-fi in accordance with IEC 268 and DIN 45500
· Short-circuit proof and thermal protected
· Mute possibility.

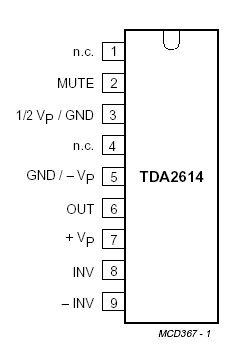

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP positive supply voltage   - 42 V
IOSM non-repetitive peak output current
   - 4 A
Ptot total power dissipation see Fig.3 - 15 W
Tstg storage temperature range   -55 +150
TXTAL crystal temperature   - +150
Tamb ambient operating temperature range   -25 +150
tsc short circuit time short circuit to ground; note 1 - 1 h



Description

The TDA2614 is a power amplifier in a 9-lead single-in-line (SIL9) plastic medium power package. It has been especially designed for mains fed applications, such as TV and radio.
