TDA2613

Features: · Requires very few external components· Input muted during power-on and off (no switch-on or switch-off clicks)· Low offset voltage between output and ground· Hi-fi according to IEC 268 and DIN 45500· Short-circuit-proof· Thermally protected.Pinout1. n.c. not connected2. n.c.not connect...

product image

TDA2613 Picture
See larger image
SeekIC No. : 004516236 Detail

TDA2613: Features: · Requires very few external components· Input muted during power-on and off (no switch-on or switch-off clicks)· Low offset voltage between output and ground· Hi-fi according to IEC 268 a...

TDA2613 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA2613
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Requires very few external components
· Input muted during power-on and off (no switch-on or switch-off clicks)
· Low offset voltage between output and ground
· Hi-fi according to IEC 268 and DIN 45500
· Short-circuit-proof
· Thermally protected.


Pinout

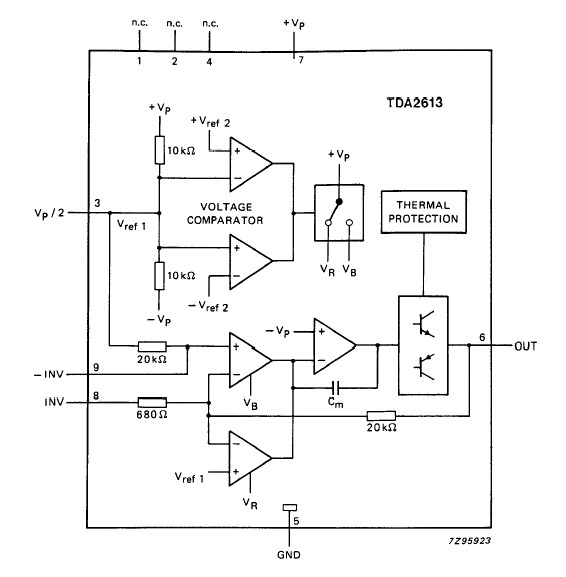

Connection Diagram
1. n.c.                              not connected
2. n.c.                              not connected
3. VP/2             1/2 VP (asymmetrical) or
                              ground (symmetrical)
4. n.c.                              not connected
5. GND            ground (asymmetrical) or
                negative supply (symmetrical)
6. OUT                                         output
7. +VP                              positive supply
8. INV                               inverting input
9. -INV                      non-inverting input


Specifications

PARAMETER CONDITIONS SYMBOL MIN. MAX. UNIT
Supply voltage   VP - 42 V
Non-repetitive peak
output current		   IOSM - 4 A
Total power dissipation see Fig.2 Ptot
Storage temperature range   Tstg -55 + 150
Junction temperature   Tj - 150
Short-circuit time:
outputs short-circuited
to ground
(full signal drive)		   tsc - 1 hour



Description

The TDA2613 is a hi-fi audio power amplifier encapsulated in a 9-lead SIL plastic power package. The device is especially designed for mains fed applications (e.g. tv and radio).
