Product Details

Description



Features:

`LINE OSCILLATOR(two levels switching)
`PHASE COMPARISON BETWEEN SYNCHRO- PULSE AND OSCILLATOR VOLTAGE 1, ENABLED BY AN INTERNAL PULSE, (better parasitic immunity)
`PHASE COMPARISON BETWEEN THE FLYBACK PULSES AND THE OSCILLATORVOLTAGE 2
`COINCIDENCE DETECTOR PROVIDING A LARGE HOLD-IN-RANGE
`FILTER CHARACTERISTICS AND GATE SWITCHING FOR VIDEO RECORDER APPLICATION
`NOISE GATED SYNCHRO SEPARATOR
`FRAME PULSE SEPARATOR .BLANKING AND SAND CASTLE OUTPUT PULSES
`HORIZONTAL POWER STAGE PHASE LAGGING CIRCUIT
`SWITCHING OF CONTROL OUTPUT PULSE WIDTH
`SEPARATED SUPPLY VOLTAGE OUTPUT STAGE ALLOWING DIRECT DRIVE OF SCR'S CIRCUIT
`SECURITY CIRCUIT MAKES THE OUTPUT PULSE SUPPRESSED WHEN LOW SUPPLY VOLTAGE




Pinout

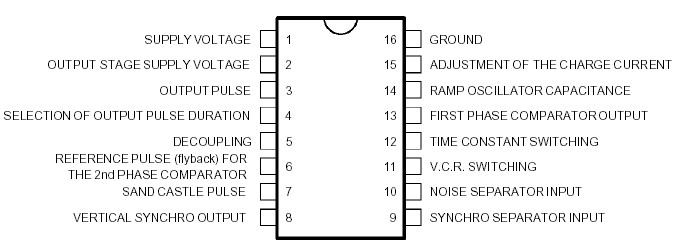

Connection Diagram


Specifications

Symbol Parameter Value Unit
V(116) Supply Voltage to Pin 1 13.2 V
V(216) Supply Voltage to Pin 2 18 V
V(416) Voltage to Pin 4 13.2 V
V(916) Voltage to Pin 9 ±6 V
V(1016) Voltage to Pin 10 ±6 V
V(1116) Voltage to Pin 11 13.2 V
I2M = -I3M Current ai Pins 2 and 3 (with thyristor) 650 mA
I2M = I3M Current ai Pins 2 and 3 (with transistor) 400 mA
I(4) Current to Pin 4 1 mA
I(6) Current to Pin 6 ±10 mA
I(7) Current to Pin 7 -10 mA
I(11) Current to Pin 11 2 mA
Ptot Power Dissipation 800 mW
Toper Operating Ambient Temperature -20, +70
Tstg Storage Temperature -25, +125



Description

The TDA2593 isa circuit intended for the horizontal deflectionof color TVsets, suppliedwith transistors or SCR'S.
