TDA2500

Features: `Class-T architecture`Proprietary Digital Power Processing technology`High Supply Voltage Range` Audiophile Sound Quality`High Efficiency`Supports wide range of output power levels`Output over-current protection`Over and under-voltage protection`38-pin Quad packageApplication·Pro-audio ...

product image

TDA2500 Picture
See larger image
SeekIC No. : 004516219 Detail

TDA2500: Features: `Class-T architecture`Proprietary Digital Power Processing technology`High Supply Voltage Range` Audiophile Sound Quality`High Efficiency`Supports wide range of output power levels`Output...

TDA2500 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA2500
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Class-T architecture
`Proprietary Digital Power Processing technology
`High Supply Voltage Range
`"Audiophile" Sound Quality
`High Efficiency
`Supports wide range of output power levels
`Output over-current protection
`Over and under-voltage protection
`38-pin Quad package


Application

·Pro-audio Amplifiers
·Distribution Amplifiers
·High-end Audio Amplifiers


Pinout

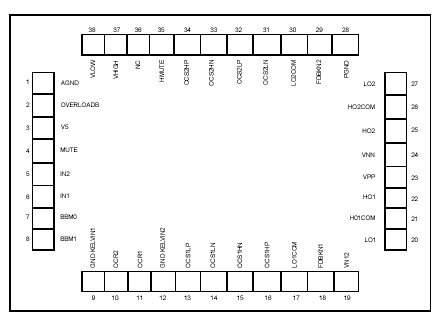

Connection Diagram


Specifications

SYMBOL PARAMETER Value UNITS
VPP, VNN Supply Voltage (Note 2) +/-200 V
V5 Positive 5V Controller Voltage
Voltage at Input Pins (pins 4-8, 10-11)		 6
-0.3 to (V5+0.3)
 V
V
VN12 Voltage for FET drive VNN+18 V
TA Operating Free-air Temperature Range 0º to 70º C
TJ Junction Temperature 150º
 C
TSTORE Storage Temperature Range -40º to 150º C
ESDHB ESD Susceptibility Human Body Model (Note 3)
All Pins		 2000 V
ESDMM ESD Susceptibility Machine Model (Note 4)
All Pins		 200 V



Description

The TDA2500 is a two-channel Amplifier Driver IC that uses Tripath's proprietary Digital Power Processing (DPPTM) technology. Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers.

The typical application for the TDA2500 is driving low impedance loads for professional and highend consumer amplifiers. The feedback and voltage range of the TDA2500 can be configured externally unlike previous Tripath modules such as TA0104A. Thus, the TDA2500 is capable of emulating Tripath's previous series of TA0102A, TA0103A, and TA0104A amplifier drivers with the addition of a small number of external components.
