Product Details

Description

Features:

·WIDE SUPPLY VOLTAGERANGE (3 to 36V)
·SINGLE OR SPLIT SUPPLY OPERATION
·VERYLOW CURRENT CONSUMPTION (0.8mA)
·VERYLOW DISTORTION
·NO POP-NOISE

Pinout

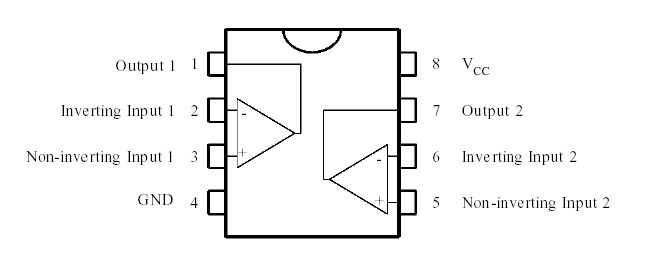

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	36	V
P_tot	Total Power Dissipation at T_amb = 70	400	mW
T_stg, T_j	Storage and Junction Temperature	40 to 150

Description

The TDA2320A is a stereo class A preamplifier intended for application in portable cassette players and high quality audio systems.

The TDA2320A is a monolithic integrated circuit in a 8 lead plastic dip.
