Product Details

Description



Features:

·POWERAMPLIFIER
·FLYBACKGENERATOR
·REFERENCE VOLTAGE
·THERMAL PROTECTION

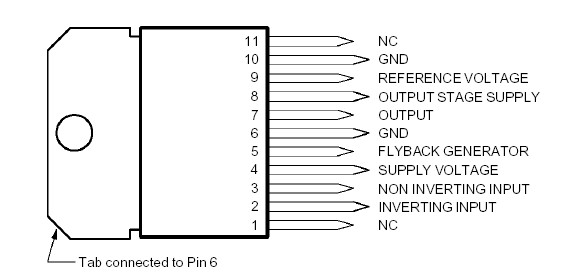

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
Vs Supply Voltage (pin 4) 35 V
V7, V8 Flyback Peak Voltage 60 V
V5 Voltage at Pin 5 + Vs
V2, V3 Amplifier Input Voltage + Vs 0.5 V
Io Output Peak Current (non repetitive, t = 2 msec) 2.5 A
Io Output Peak Current at f = 50 Hz, t 10 msec 3 A
Io Output Peak Current at f = 50 Hz, t > 10 msec 2 A
I5 Pin 5 DC Current at V7 < V4 100 mA
I5 Pin 5 Peak to Peak Flyback Current at f = 50 Hz, tfly 1.5 msec 3 A
Ptot Total Power Dissipation at Tcase = 60 30 W
Tstg, Tj Storage and Junction Temperature 40 to 150



Description

The TDA2170 is a monolithic integrated circuit in 11-lead Multiwatt) package. It is a high efficiency power booster for direct driving of vertical windings of TV yokes. It is intended for use in Colour are B & Wtelevision receivers as well as in monitors and displays.
