TDA21302

Series: -
Mounting Type: Surface Mount
Number of Outputs: 4
Voltage - Input: 4.5 V ~ 5.5 V
Operating Temperature: 0°C ~ 70°C
Packaging: Tape & Reel (TR)
Manufacturer: Infineon Technologies
Package / Case: 32-SOIC (0.295", 7.50mm Width)
Applications: PWM Controller, CPU core
Voltage - Output: 0.8375 V ~ 1.6 V
Supplier Device Package: DSO-32


Features:

• Multi-Phase PWM Conversion with Automatically Phase Selection
• VRD10.X Compliant
• Active Droop Compensation For Fast Load Response
• Smooth VCORE Voltage Transition during the VID On The Fly
• Power Stage Thermal Balance By Sync FET Rds(on) Current Sense Technique
• Hiccup Mode Over Current Protection
• Programmable Switching Frequency ( 50KHz ~ 400KHz per Phase ), Under Voltage Lockout, and Soft-Start
• High Output Ripple Frequency times numbers of working Channels


Application

• Intel Processor Voltage Regulator : VRM10.X
• Low Output Voltage High Output Current DC-DC Converters
• Voltage Regulator Modules

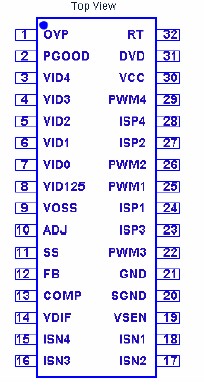

Pinout




Specifications

Parameter	Symbol	Value		Unit
		Min.	Max.
Voltage supplied to 'VCC' pin; DC	VCC	-0.3	7	V
Input, Output or I/O Pin		-0.3	Vcc+0.3
Junction temperature	TJ	0	125
Storage temperature	TS	-65	150
ESD Rating; Human Body Model		2		KV
ESD Rating; Machine M Model		200		V
IEC climatic category; DIN EN 60068-1		55/150/56		-

Description

TDA21302 is a multi-phase DC-DC buck converter controller integrated all control functions for the next generation GHz CPU voltage regulator. TDA21302 automatically controls 2 to 4 interleaved buck switching power stage operation. The multi-phase architecture is able to provide high output current with lower power dissipation on the switching devices and minimizing the input ripple current and output ripple voltage. The equivalent high operation frequency optimizes the voltage regulator design for better transient response and thermal performance.

TDA21302 utilizes the Sync FET Rds(on) in every channel as the current sense element. The differential current sense in every channel results precious channel current information to the controller for good droop adjustment, channel current balance, channel switching devices thermal balance and over current protection.

Parameters:

Technical/Catalog Information	TDA21302
Vendor	Infineon Technologies
Category	Integrated Circuits (ICs)
Package / Case	DSO-32
Packaging	Tape & Reel (TR)
Type	CPU Voltage Regulator
Voltage - Input	4.5 ~ 5.5 V
Voltage - Output	-
Number of Outputs	4
Applications	PWM Controller, CPU core
Operating Temperature	0°C ~ 70°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TDA21302 TDA21302
