TDA2030A

PinoutSpecifications Symbol Parameter Value Unit Vs Supply Voltage ± 22 V Vi Input voltage VS Vi Differential input voltage ± 15 V Io Peak Output Current (internally limited) 3.5 A Ptot Total Power Dissipation at Tcase = 90 °C 20 W ...

product image

TDA2030A Picture
SeekIC No. : 004516199 Detail

TDA2030A: PinoutSpecifications Symbol Parameter Value Unit Vs Supply Voltage ± 22 V Vi Input voltage VS Vi Differential input voltage ± 15 V Io Peak Output Curre...

floor Price/Ceiling Price

Part Number:
TDA2030A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/4

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

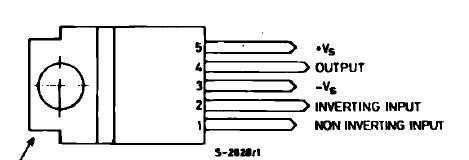

  Connection Diagram




Specifications

Symbol Parameter
Value
Unit
Vs Supply Voltage
± 22
V
Vi Input voltage
VS
Vi Differential input voltage
± 15
V
Io Peak Output Current (internally limited)
3.5
A
Ptot Total Power Dissipation at Tcase = 90 °C
20
W
Tstg, Tj Stoprage and junction temperature
-40 to 150


Symbol Parameter
Value
Unit
Vs Supply Voltage
± 22
V
Vi Input voltage
VS
Vi Differential input voltage
± 15
V
Io Peak Output Current (internally limited)
3.5
A
Ptot Total Power Dissipation at Tcase = 90 °C
20
W
Tstg, Tj Stoprage and junction temperature
-40 to 150





Description

The TDA2030A is a monolithic IC in Pentawatt ® package intended for use as low frequency class AB amplifier.

With VS max = 44V it is particularly suited for more reliable applications without regulated supply and for 35W driver circuits using low-cost complementary pairs.

The TDA2030A provides high output current and has very low harmonic and cross-over distortion.

Further the device incorporates a short circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the working point of the output transistors within their safe operating area. A conventional thermal shut-down system is also included.



The TDA2030A is designed as one kind of 18W Hi-Fi amplifier and 35W driver which provides high output current and has very low harmonic and cross-over distortion.It incorporates a short circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the working point of the output transistors within their safe operating area.

The absolute maximum ratings of the TDA2030A can be summarized as:(1)supply voltage:±22 V;(2)input voltage:Vs;(3)differential input voltage:±15 V;(4)peak output current (internally limited):3.5 A;(5)total power dissipation at Tcase=90 °C:20 W;(6)storage and junction temperature:-40 to +150 °C.If you want to know more information such as the electrical characteristics about the TDA2030A,please download the datasheet in www.seekic.com or www.chinaicmart.com .
