Product Details

Description

Pinout

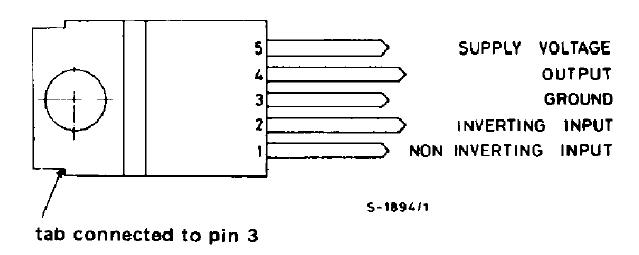

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
Vs	DC supply voltage	28	V
Io	Output peak current (repetitive)	3	A
Io	Output peak current ( non repetitive)	4	A
Ptot	Power dissipation at T_case = 90°C	20	W
Tstg, Tj	Storage and junction temperature	- 40 to 150	°C

Description

The TDA2008 is a mololithic class B audio power amplifier in Pentawatt[ package designed for driving low impedenceloads(down to 3.2W). Thedivice provides a high output current capability(up to 3A), very low harmonic and crossover distortion. In addition,the device offers the following features:
very low number of external components;
assembly ease, due to Pentawatt[ power package with no electrical insulations requirements;
space and cost saving;
high reliability;
flexibility in use;
thermal protection.
