Product Details

Description

Features:

·OUTPUT DC AND AC SHORT CIRCUIT TO GROUND
·OVERRATING CHIP TEMPERATURE
·LOAD DUMPVOLTAGESURGE
·FORTUITOUS OPEN GROUND
·VERYINDUCTIVE LOADS

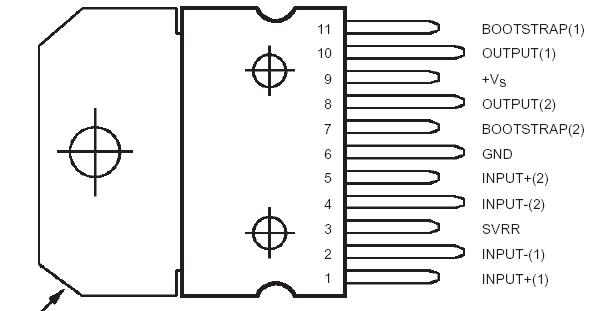

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
Vs	Operating Supply Voltage	18	V
V_s	DC Supply Voltage	28	V
V_s	Peak Supply Voltage (for 50 ms)	40	V
I_o(*)	Output Peak Current (non repetitive t = 0.1	4.5	A
I_o(*)	Output Peak Current (repetitive f10 Hz)	3.5	A
P_tot	Power Dissipation at T_case = 60 °C	30	W
T_stg, T_j	Storage and Junction Temperature	- 40 to 150	°C

Description

The TDA2005is classB dual audio poweramplifier in MULTIWATT® packagespecifically designedfor car radio application : power booster amplifiers are easily designed using this device that provides a high current capability (up to 3.5 A) and that can drive very low impedance loads (down to 1.6 in
