TDA2004A

Features: Low distortion.Low noise.High reliability of the chip and of the package withadditional safety during operation thanks to protectionsagainst : .OUTPUT AC SHORT CIRCUIT TO GROUND .VERY INDUCTIVE LOADS .OVERRATINGCHIP TEMPERATURE .LOADDUMP VOLTAGE SURGE .FORTUITOUS OPENGROUNDSpace and cost...

product image

TDA2004A Picture
See larger image
SeekIC No. : 004516191 Detail

TDA2004A: Features: Low distortion.Low noise.High reliability of the chip and of the package withadditional safety during operation thanks to protectionsagainst : .OUTPUT AC SHORT CIRCUIT TO GROUND .VERY INDU...

TDA2004A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA2004A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low distortion.
Low noise.
High reliability of the chip and of the package with
additional safety during operation thanks to protections
against :
.OUTPUT AC SHORT CIRCUIT TO GROUND
.VERY INDUCTIVE LOADS
.OVERRATINGCHIP TEMPERATURE
.LOADDUMP VOLTAGE SURGE
.FORTUITOUS OPENGROUND
Space and cost saving : very low number of external components,very simple mounting system with no electrical isolation between the packageand the heatsink.

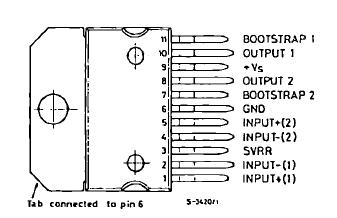

Pinout

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
Vs Opearting Supply Voltage
18
V
Vs DC Supply Voltage
28
V
Vs Peak Supply Voltage (for 50ms)
40
V
IO (*) Output Peak Current (non repetitive t = 0.1ms)
4.5
A
IO (*) Output Peak Current (repetitive f 10Hz)
3.5
A
Ptot Power Dissipation at Tcase = 60°C
30
W
Tj, Tstg Storage and Junction Temperature
40, + 150
°C
(*) The max. output current is internally limited.


Description

The TDA2004A is a class B dual audio power amplifier in MULTIWATT[ package specifically designedfor car radioapplications; stereoamplifiers are easily designed using this device that provides a high current capability (up to 3.5A) and that can drive very low impedance loads (down to 1.6W ).
