TDA1904

Common Mode Rejection Ratio (Min) :
Packaging : Tube
THD plus Noise : 0.1 %
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Output Type : 1-Channel Mono
Product : Class-AB
Package / Case : PDIP-16
Operating Supply Voltage : 9 V, 12 V, 15 V, 18 V
Available Set Gain : 75 dB
Supply Current : 2.5 A
Output Power : 4.5 W
Maximum Power Dissipation : 6000 mW


Features:

·HIGH OUTPUT CURRENT CAPABILITY
·PROTECTION AGAINST CHIP OVERTEMPERATURE LOWNOISE
·HIGH SUPPLY VOLTAGE REJECTION
·SUPPLY VOLTAGERANGE: 4V TO 20V

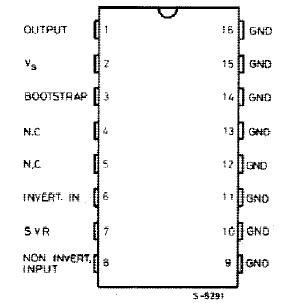

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply voltage	20	V
IO	Peak output current (non repetitive)	2.5	A
IO	Peak output current (repetitive)	2	A
Ptot	Total power dissipation at Tamb = 80	1	W
	at Tpins = 60	6	W
Tstg, Tj	Storage and junction temperature	-40 to 150

Description

The TDA1904 is a monolithic integrated circuit in POWERDIP package intended for use as low-frequency power amplifier in wide range of applications in portable radio and TV sets.
