TDA1771: Plasma Drivers Vertical Deflection

TDA1771 Data Sheet

Get Latest Price

Part Number:: TDA1771
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

TDA1001B evaluate
Features: · Active low-pass and high-pass filters· Interference pulse detector with adjustable and...
TDA1001BT evaluate
Features: · Active low-pass and high-pass filters· Interference pulse detector with adjustable and...
TDA10021HT evaluate
Features: · 4, 16, 32, 64, 128 and 256 Quadrature Amplitude Modulation (QAM) demodulator (DVB-C co...

Product Details

Description

Series: -
Packaging: Tube
Mounting Type: Through Hole
Manufacturer: STMicroelectronics
Applications: Monitors, TV
Package / Case: 10-SIP
Supplier Device Package: 10-SIP
Type: Video

Features:

·RAMP GENERATOR
·INDEPENDENT AMPLITUDE ADJUSTEMENT
·BUFFER STAGE
·POWER AMPLIFIER
·FLYBACK GENERATOR
·INTERNAL REFERENCE VOLTAGE
·THERMAL PROTECTION

Pinout

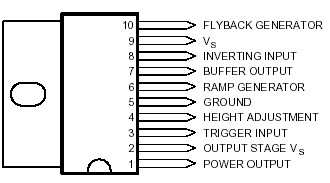

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_S	Supply Voltage	30	V
V₁ , V₂	Flyback Peak Voltage	65	V
V₃	Trigger Input Voltage	20	V
V₈	Amplifier Input Voltage	GND to V_S	V
I₀	Output Peak to Peak Current (non repetitive t = 2ms)	6	A
I₀	Output Peak to Peak Current t > 10s	4	A
I₁₀	Pin 10 DC Current at V₁ < V₉	100	mA
I₁₀	Pin 10 Peak to Peak Current @ tfly < 1.5ms	3	A
P_tot	Total Power Dissipation @ T_tab = 60	9	W
T_S , T_J	Storage and Junction Temperature	40, + 150

Description

The TDA1771 is a monolithic integrated circuit in SIP10 package.

It is a full performance and very efficient vertical deflection circuit intended for direct drive of a TV picture tube in Color and B & W television as well as in Monitor and Data displays.
