TDA16847

Number of Outputs :
Output Current :
Switching Frequency :
Operating Supply Voltage :
Supply Current :
Maximum Operating Temperature :
Minimum Operating Temperature :
Mounting Style :
Package / Case :
Packaging : Tube


Features:

• Line Current Consumption with PFC
• Low Power Consumption
• Stable and Adjustable Standby Frequency
• Very Low Start-up Current
• Soft-Start for Quiet Start-up
• Free usable Fault Comparators
• Synchronization and Fixed Frequency Facility
• Over- and Undervoltage Lockout
• Switch Off at Mains Undervoltage
• Temporary high power circuit (only TDA 16847)
• Mains Voltage Dependent Fold Back Point Correction
• Continuous Frequency Reduction with Decreasing Load
• Adjustable and Voltage Dependent Ringing Suppression Time

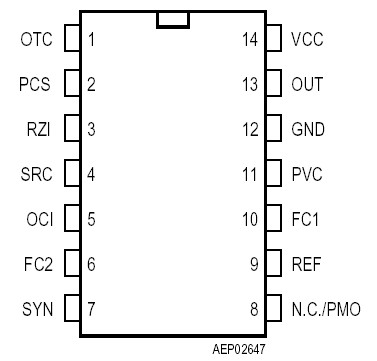

Pinout




Specifications

Parameter	Symbol	Limit Values		Unit	Remarks
		min.	max.
Supply Voltage at Pin 14	VCC	0.3	17	V
Voltage at Pin 1, 4, 5, 6, 7, 9, 10		0.3	6	V
Voltage at Pin 2, 8, 11		0.3	17	V
Voltage at Pin 3 Current into Pin 3	RZI	10	6	V mA	V3 < 0.3 V
Current into Pin 9	REF	1		mA
Current into Pin 13	OUT	100	100	mA mA	V13 > VCC V13 < 0 V
ESD Protection			2	kV	MIL STD 883C method 3015.6, 100 pF, 1500 Ω
Storage Temperature	Tstg	65	125
Operating Junction Temperature	TJ	25	125
Thermal Resistance Junction-Ambient	RthJA		110	K/W	P-DIP-14-3
Soldering Temperature			260
Soldering Time			10	s

Description

The TDA16847 is optimized to control free running or fixed frequency flyback converters with or without Power Factor Correction (Current Pump). To provide low power consumption at light loads, this TDA16847 reduces the switching frequency continuously with load, towards an adjustable minimum (e. g. 20 kHz in standby mode). Additionally, the start up current is very low. To avoid switching stresses of the power devices, the power transistor is always switched on at minimum voltage. A special circuit is implemented to avoid jitter. The device has several protection functions: V_CC over- and undervoltage, mains undervoltage, current limiting and 2 free usable fault comparators. Regulation can be done by using the internal error amplifier or an opto coupler feedback (additional input). The output driver is ideally suited for driving a power MOSFET, but it can also be used for a bipolar transistor. Fixed frequency and synchronized operation are also possible.

The TDA16847 is suited for TV-, VCR- sets and SAT receivers. It also can be good used in PC monitors.

The TDA16847 is identical with TDA 16846 but has an additional power measurement output (pin 8) which can be used for a Temporary High Power Circuit.


Parameters:

Technical/Catalog Information	TDA16847
Vendor	Infineon Technologies
Category	Integrated Circuits (ICs)
Type	-
Voltage - Supply	8 V ~ 16 V
Current - Supply	5mA
Voltage - Input	-
Package / Case	14-DIP (300 mil)
Packaging	Tape & Reel (TR)
Applications	Power Supply Controller
Operating Temperature	-25°C ~ 125°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA16847 TDA16847
