TDA1599

Features: · Balanced limiting amplifier· Balanced coincidence demodulator· Two open-collector stop pulse outputs for microcomputer tuning control· Simulated behaviour of a ratio detector (internal field strength and detuning dependent voltage for dynamic AF signal muting)· Mono/stereo blend field ...

product image

TDA1599 Picture
See larger image
SeekIC No. : 004516167 Detail

TDA1599: Features: · Balanced limiting amplifier· Balanced coincidence demodulator· Two open-collector stop pulse outputs for microcomputer tuning control· Simulated behaviour of a ratio detector (internal f...

TDA1599 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA1599
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Balanced limiting amplifier
· Balanced coincidence demodulator
· Two open-collector stop pulse outputs for microcomputer tuning control
· Simulated behaviour of a ratio detector (internal field strength and detuning dependent voltage for dynamic AF signal muting)
· Mono/stereo blend field strength indication control voltage
· AFC output
· 3-state mode switch for FM-MUTE-ON, FM-MUTE-OFF and FM-OFF
· Internal compensation of AF signal total harmonic distortion (THD)
· Built-in hum and ripple rejection circuits.

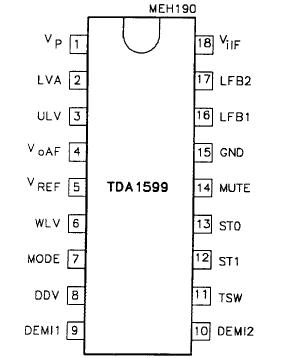

Pinout

Connection Diagram


Specifications

In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL PARAMETER MIN. MAX. UNIT
VP supply voltage -0.3 +13 V
Vn1 voltage at pins 2, 4, 5, 6, 10, 11 and 16 -0.3 +10 V
Vn2 voltage at pins 3, 7, 8, 14, 15, 18,
19 and 20		 -0.3 VP V
V13 voltage on pin 13 - 6 V
I14, 15 current at pins 14 and 15 - 2 mA
Ptot total power dissipation - 360 mW
Tstg storage temperature -55 +150 °C
Tamb operating ambient temperature -40 +85 °C
VESD electrostatic handling; note 1
all pins except 5 and 7
pin 5

pin 7 		-
-

-		 +2000
+800
-2000
+1000
-2000		 V
V
V
V
V

Note to the limiting values
1. Equivalent to discharging a 100 pF capacitor through a 1.5 k series resistor.




Description

The TDA1599 provides IF amplification, symmetrical quadrature demodulation and level detection for quality home and car FM radio receivers and is suitable for mono and stereo reception. It may also be applied to common front ends, stereo decoders and AM receiver circuits.
